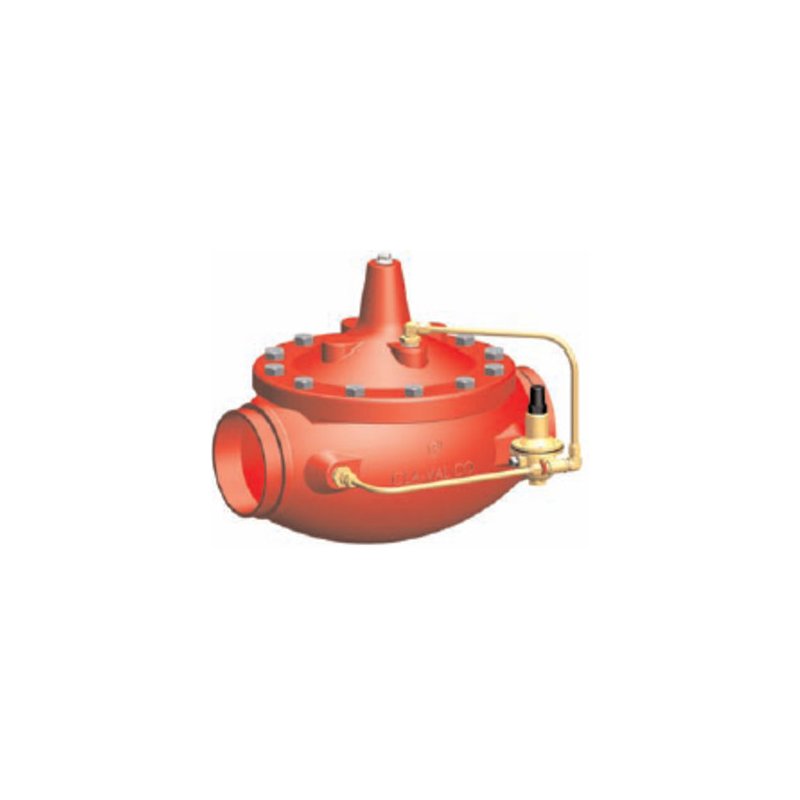

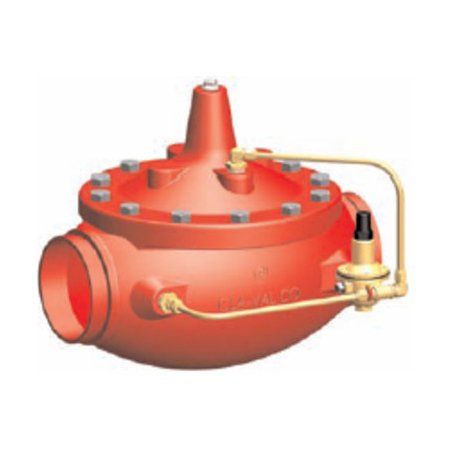

Pressure reducing valve, 90G-21 plain, grooved ends, ANSI 300, Max Rated Inlet Pressure 300psig
$2,656.75
Tax excluded
Cla-Val 90G-21 (globe) and 90A-21 (angle) Pressure Reducing Valves are indispensable in any fire protection
system.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Cla-Val 90G-21 (globe) and 90A-21 (angle) Pressure Reducing Valves are indispensable in any fire protection
system. Our diaphragm actuated design is proven highly reliable and easy to maintain. We offer both a globe or
angle pattern with a full range of adjustments. These valves are also available in a variety of material options. Epoxy
coating is strongly recommended for all fire system valves (excluding bronze valves). The 90G-21 and 90A-21 can be
supplied with optional internal and external epoxy coating of the main valve wetted surfaces.
002372
Data sheet
- Approvals
- UL
- Rated Pressure
- 300 psi /20.7 bar
- Brands
- Cla-Val
- Adjustment Ranges
- 0 to 75 ps
100 to 300 psi
20 to 200 psi - Valve Ends
- Bronze 300# F
Bronze 300# Threaded
Cast Steel 300# F
Ductile Iron 150# F
Ductile Iron 300 # F
Ductile Iron 300# S
Ductile Iron Grooved End
